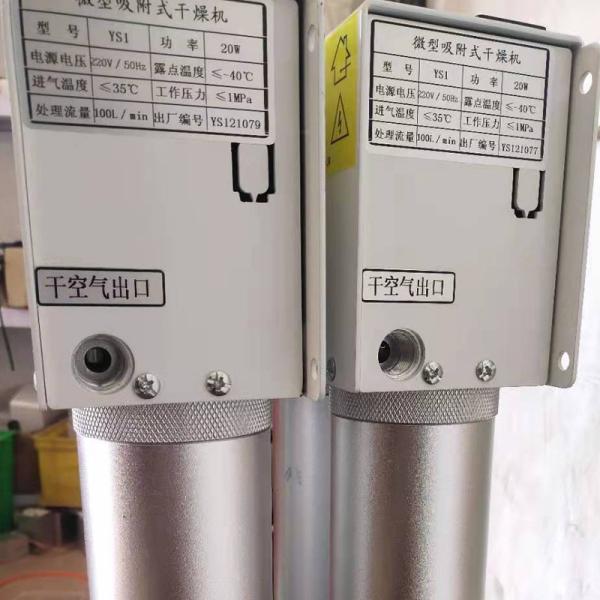

Mini Heatless Adsorption Compressed Air Dryer For Low Temperature
Test
Unique
We are the factory, only produces the smallest air dryer, we are
the only smallest air dryer manufacturers
Every year, 80% of the loss of pneumatic components are due to the
use of unclean and not dry gas medium
But the general automation equipment of air consumption is only
around 0.3 cubic minutes
The Air Dryer on the market is more than 1 cubic per minute, the
volume is the size of a table, high prices, and difficult to match
with automation equipment
Our adsorption dryer is suitable for automatic products, can be
used as a pneumatic accessories, installed next to the automation
equipment.
Product advantages
1.High quality adsorbent, stable dew point
* 30% residual filling is anti-aging, which can easily cope with
short period of severe working conditions;
* 3.0mm diameter, larger active surface area, high strength, good
water resistance
2.High reliability design, stable and reliable performance, minimal
maintenance
* Excellent simplified design to ensure no less than 5.2 seconds of
contact time;
* Layered dense filling process, low risk of adsorbent wear, long
life, reliable dew point;
* with low risk of leakage, long life and less maintenance
Apply
Adsorption air dryer is suitable for flue gas detection,
environmental detection and laboratory and other special
requirements of the dryer, to meet the requirements of users to
remove carbon dioxide, hydrogen sulfide in the product gas.
| Item No. | YS-1 | YS-2 | YS-3 |
| Dew Point Temperature | -40°C |
| Processing Capacity* | 100L/min | 200L/min | 400L/min |
| Regeneration Capacity | 15L/min | 30L/min | 90L/min |
| Power Voltage | 220v,50/60Hz(110v as customize) |
| Power | 10W | 10W | 10W |
| Working Pressure | 0.25≤P≤1.0MPa |
| Inlet Temperature | ≤35℃ |
| Inlet / Outlet connector | PT1/2 |
| Overall Dimensions | 192*436*86mm | 192*516*86mm | 242*586*126mm |
